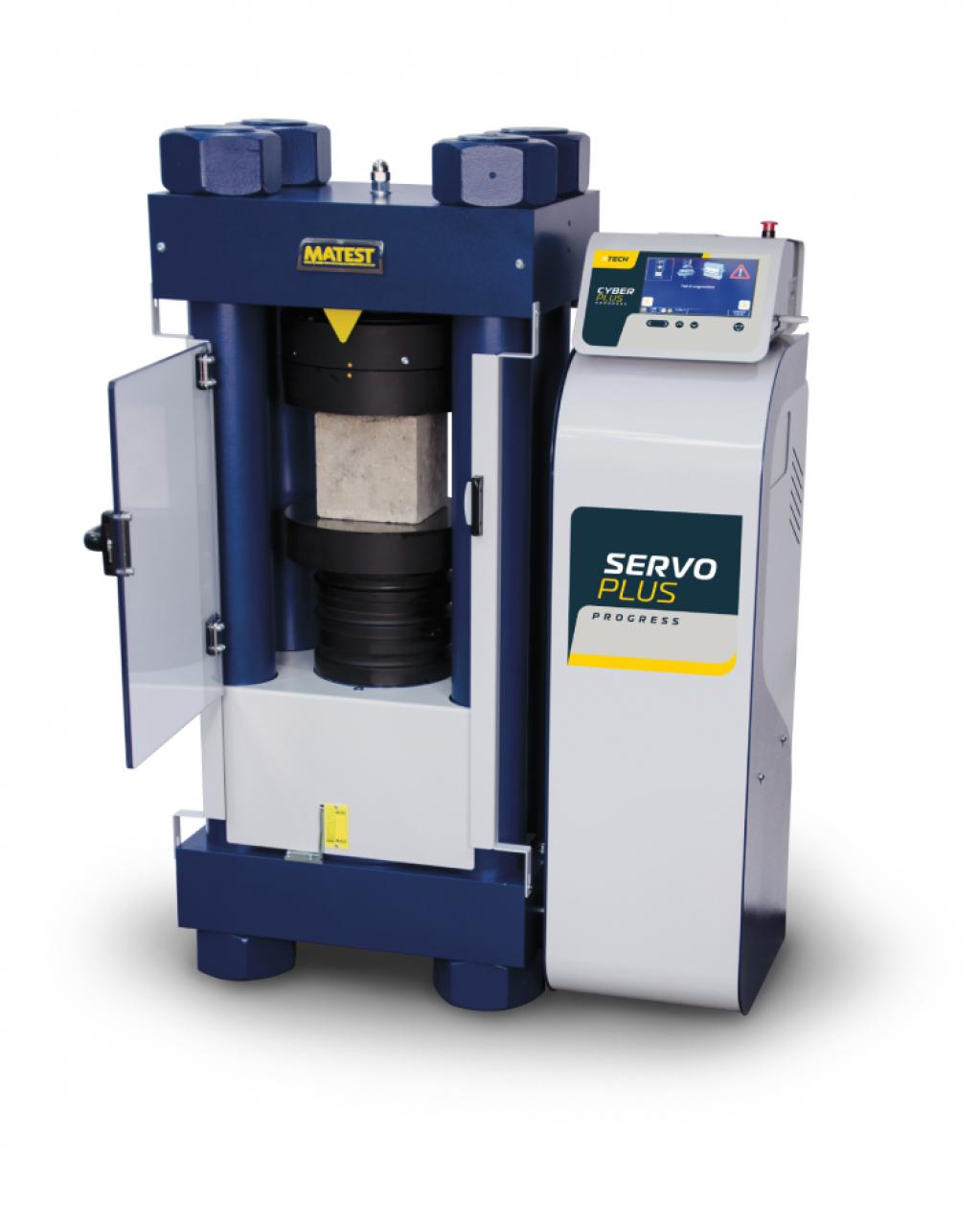

C089-10N Concrete compression machine 3000 kN automatic, Servo-Plus Progress

( Concrete )

EN 12390-4
BS 1881:115
DIN 51220
NF P18-411
ASTM C39
AASHTO T22
GOST 10180

Compression testing machine 3000 kN motorized with Servo-Plus Progress control unit (for fully automatic tests), high stability, to test cubes up to 200 mm side and cylinders up to dia. 160x320 mm.

Request information

C111-24

Distance Pieces 50mm High for High Stability Machines
C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C097-08

Official Accredia hardness certificate
C107-01

Auto-centering device for cubes and cylinders, platen 287 mm
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C104-04

Console Housing the Servo-Plus Progress
C110-15

Light lower compression platen
C110-20

Lower compression platen
C107-10

Capping retainers for Ø 150x300 mm and 6''x12'' cylinders
C107-20

Neoprene pads 60 shore A for dia. 150x300 mm
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C110-30

Upper compression platen + spherical seat
C106

Flexural device on concrete beams
C126

Bench for compression machines
C099N

Inverter device
C099-01

Barcode Scanner
C089-12

Testing chamber for 3000 kN Compression machines
C104-10N

Firmware and software
C097-01

Dual low capacity range
C100

Splitting tensile test device for cylinders
C103

Splitting tensile device for cubes
C121-52

Electric switch for the piston
C111-14

Distance Pieces for 2000 and 3000 kN EN
E170

Compression device for mortar prisms, EN standard
SSW-LINK

Firmware Upgrade for SmartLab Software
SSW-LINK

Aggiornamento Firmware per SmartLab
C121-07

Safety guards for 3000 Kn compression machines
C125M

Elastic modulus on concrete

Non sei loggato per vedere i manuali Entra

Max. vertical daylight: 334.5 mm
Horizontal daylight between columns: 272 mm
Compression platens Ø 287X60 mm
Calibration accuracy: Class 1
Max. ram travel 60 mm approx.
High stiffness and heavy-weight 4-column frame (German-style)
Power supply: 230V 1ph 50Hz 750W
Dimensions: 800x470x1200 mm approx.
Weight: 1200...1250 k
