  5. Concrete compression machine 1500 kN automatic, Servo-Plus Progress
Test Standard Category
Concrete
Compression testing machine Compression testing machine

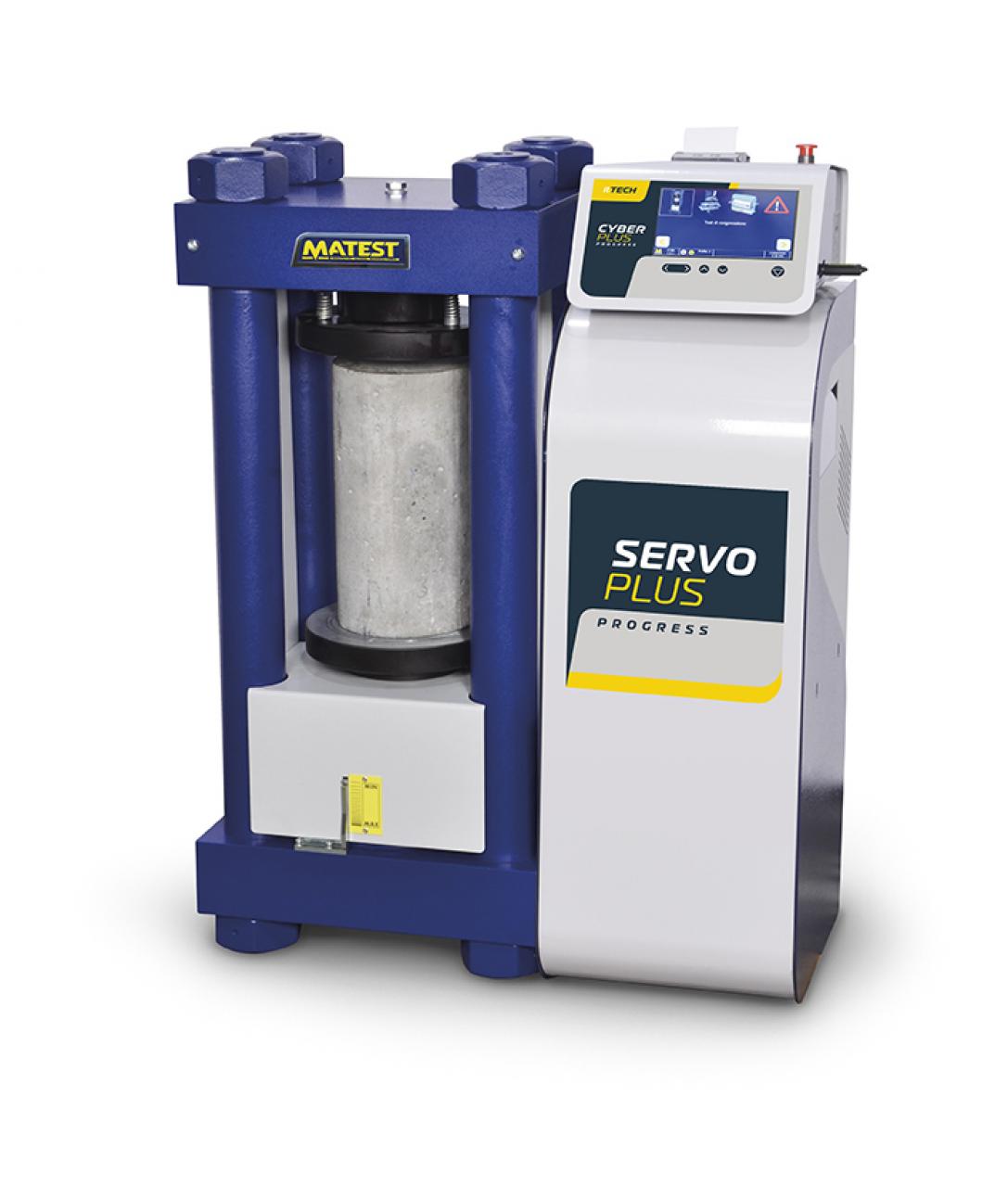

C041N Concrete compression machine 1500 kN automatic, Servo-Plus Progress

( Concrete )
  • ASTM C39
  • AASHTO T22
  • NF P18-411
  • BS 1610
  • GOST 10180

Compression testing machine 1500 kN capacity motorized with Servo-Plus Progress control unit (fully automatic model), to test cubes up to 150 mm side and cylinders up to diameter 160x320 mm.

Request information

Compressive Strength

  • ASTM C39
  • AASHTO T22
  • NF P18-411
  • BS 1610
  • BS 6073
  • EN 772-1
  • ASTM C140
  • ASTM C1314
  • Max. vertical daylight: 336 mm
  • Horizontal daylight between columns: 270 mm
  • Compression platens Ø 216 x 30 mm
  • High stiffness and heavyweight 4-column frame (german-style).
  • Calibration accuracy: Class 1
  • Max. ram travel 55 mm approx.
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 710x400x920 mm approx.
  • Weight: 580...620 kg
