  5. Concrete compression machine 2000 kN semi-automatic, Digitec
Test Standard Category
Concrete
Compression testing machine Compression testing machine

C055D Concrete compression machine 2000 kN semi-automatic, Digitec

( Concrete )
  • ASTM C39
  • AASHTO T22
  • NF P18-411
  • BS 1610
  • GOST 10180

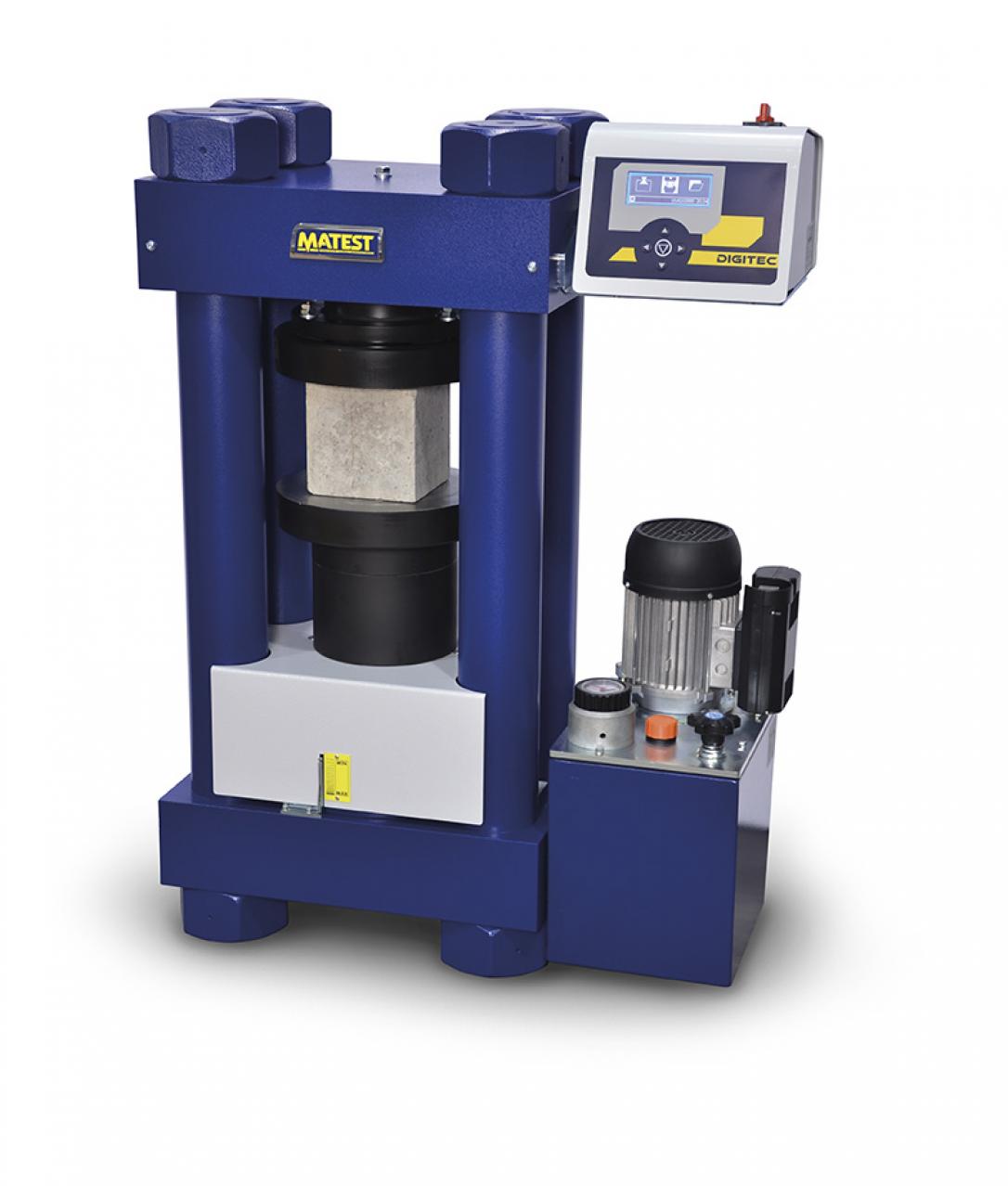

Compression machine 2000 kN motorized with Digitec control unit, to test cubes up to 150 mm side and cylinders up to dia. 160x320 mm.

Request information
Non sei loggato per vedere i manuali Entra
  • Max. vertical daylight: 336 mm
  • Horizontal daylight between columns: 270 mm
  • Compression platens Ø 216 x 30 mm
  • High stiffness and heavyweight 4-column frame (german-style).
  • Calibration accuracy: Class 1
  • Max. ram travel 55 mm approx.
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 750x450x1000 mm approx.
  • Weight: 670...720 kg
