Test Standard Category
Concrete

C058-04N Concrete compression machine 2000 kN semi-automatic, Cyber-Plus Progress

( Concrete )
  • ASTM C39
  • AASHTO T22
  • BS 1610
  • GOST 10180

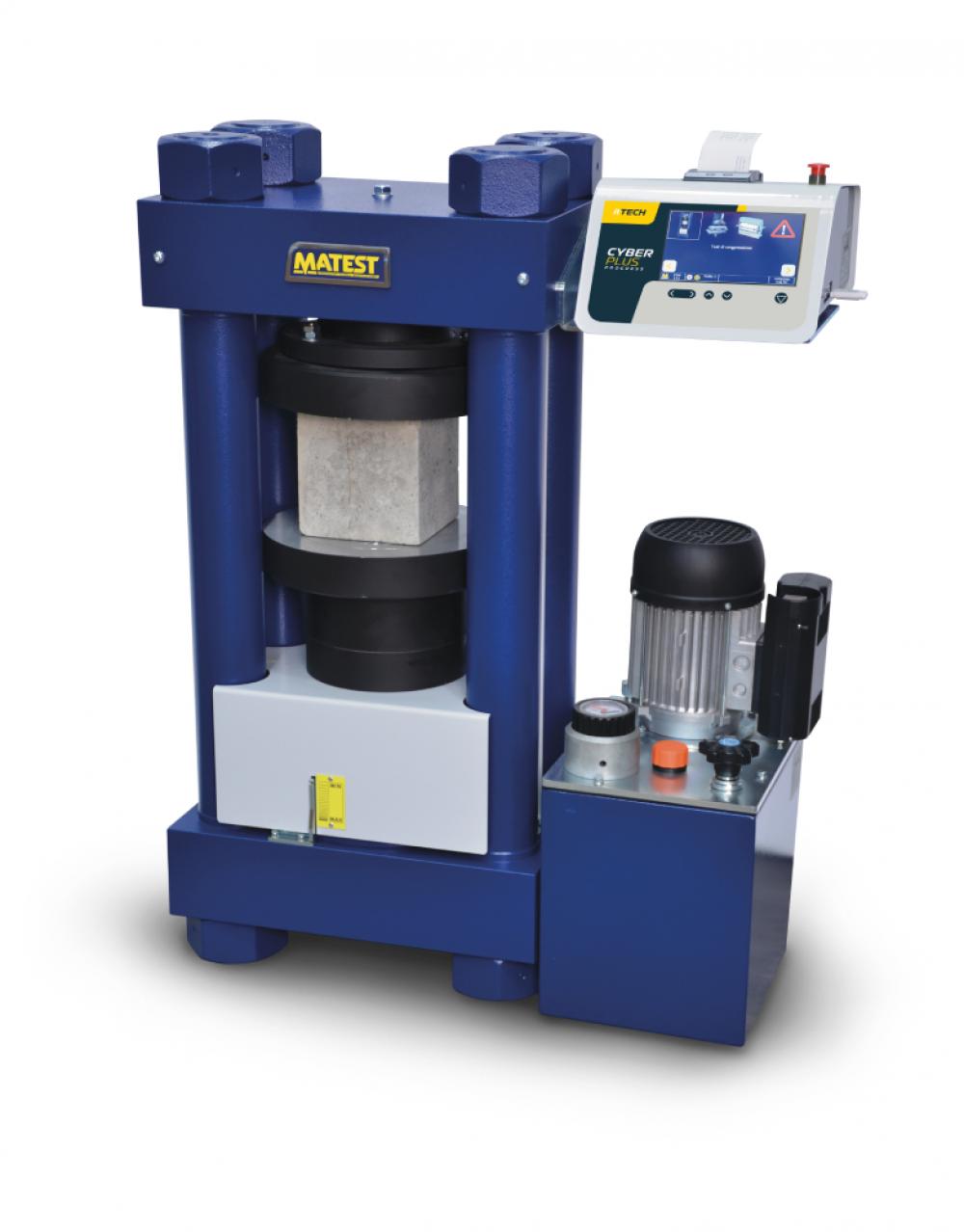

Compression testing machine 2000 kN capacity motorized with Cyber-Plus Progress touch-screen control unit (semi-automatic model), to test cubes up to 200 mm side and cylinders up to 280 mm height.

Request information
  • Max. vertical daylight: 282 mm
  • Horizontal daylight between columns: 270 mm
  • Compression platens Ø 287 x 51 mm
  • High stiffness and heavyweight 4-column frame (German style)
  • Calibration accuracy: Class 1
  • Max. ram travel 55 mm approx.
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 750x450x1000 mm approx.
  • Weight: 670...720 kg
