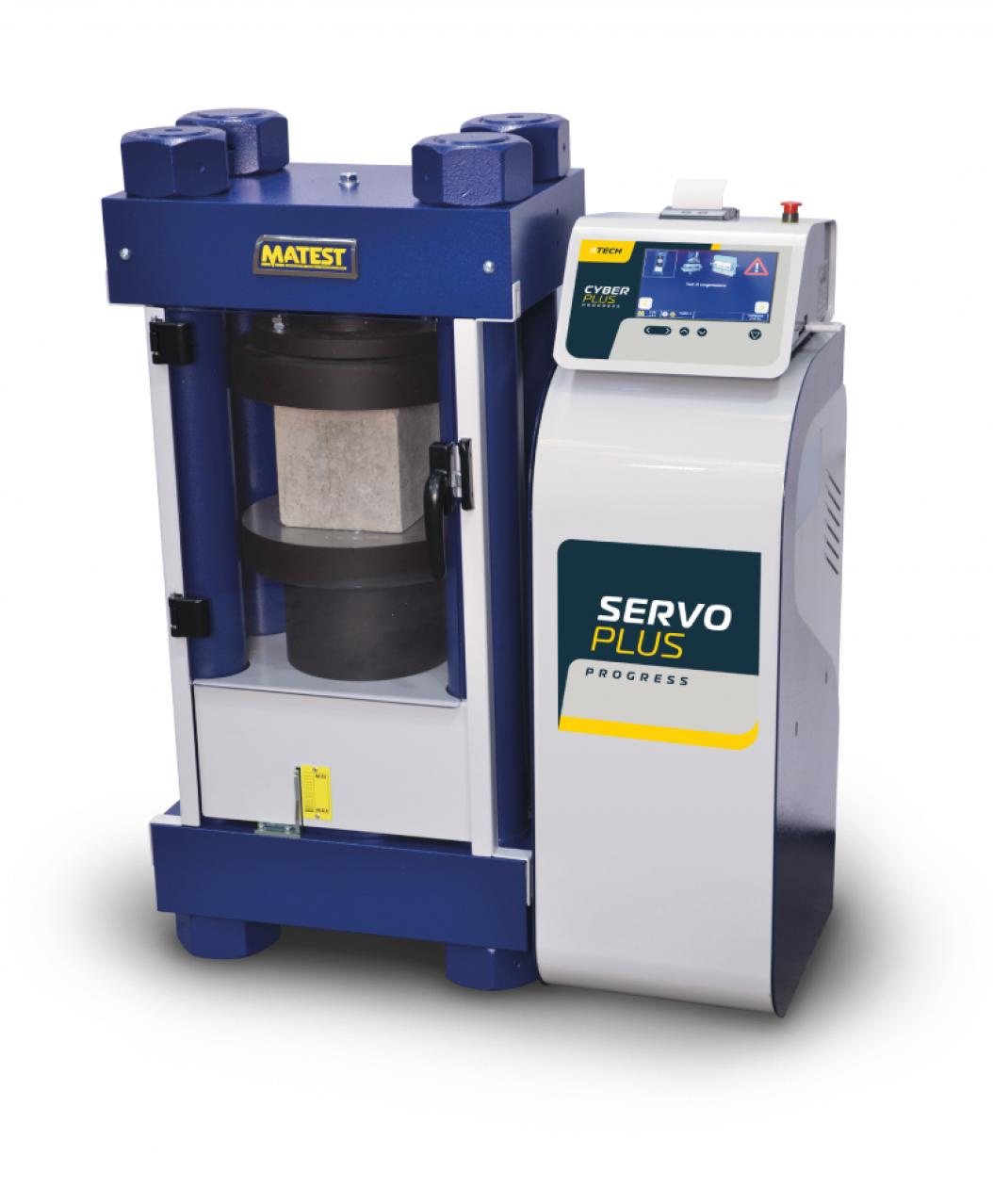

Compression machine 2000 kN, Servo-Plus Progress

Code: C058-05N

Compression testing machine 2000 kN capacity motorized with Servo-Plus Progress (fully automatic model), to test cubes up to 200 mm side and cylinders up to 280 mm height.

C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C107-21

Neoprene pads 70 shore A for dia. 150x300 mm and 6''x12'' cylinders
C107-25

Neoprene pads 60 shore A dia. 160x320 mm cylinders
C107-26

Neoprene pads 70 shore A for dia. 160x320 mm cylinders
C107-01

Auto-centering device for cubes and cylinders, platen 287 mm
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C104-04

Console Housing the Servo-Plus Progress
C110-15

Light lower compression platen
C110-20

Lower compression platen
C056-11

Testing chamber for 2000 kN Compression machines
C107-10

Capping retainers for Ø 150x300 mm and 6''x12'' cylinders
C107-12

Capping retainers for Ø 160x320 mm cylinders
C107-20

Neoprene pads 60 shore A for dia. 150x300 mm
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C110-30

Upper compression platen + spherical seat
C106

Flexural device on concrete beams
C126

Bench for compression machines
C099N

Inverter device
C099-01

Barcode Scanner
C097-01

Dual low capacity range
C100

Splitting tensile test device for cylinders
C103

Splitting tensile device for cubes
C121-52

Electric switch for the piston
C111-22

Distance pieces for 1300, 1500, 2000, 3000 kN ASTM
E170

Compression device for mortar prisms, EN standard
C112-10

Upper and lower compression platens with seat ball
C121-05

Safety guards for 2000 kN compression machines
SSW-LINK

Firmware Upgrade for SmartLab Software
C104-10N

In-built firmware for compression test with displacement control

Max. vertical daylight: 282 mm
Horizontal daylight between columns: 270 mm
Compression platens Ø 287 x 51 mm
High stiffness and heavyweight 4-column frame (german-style)
Calibration accuracy: Class 1
Max. ram travel 55 mm approx.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 750x450x1000 mm approx.
Weight: 670...720 kg

Concrete compression machine 2000 kN automatic, Servo-Plus Progress
