Test Standard Category
Concrete

C079-06N Concrete compression machine 3000kN automatic, Servo-plus Progress

( Concrete )
  • EN 772-1
  • ASTM C39
  • ASTM C140
  • ASTM C1314
  • AASHTO T22
  • NF P18-411
  • BS 1610
  • BS 6073
  • GOST 10180

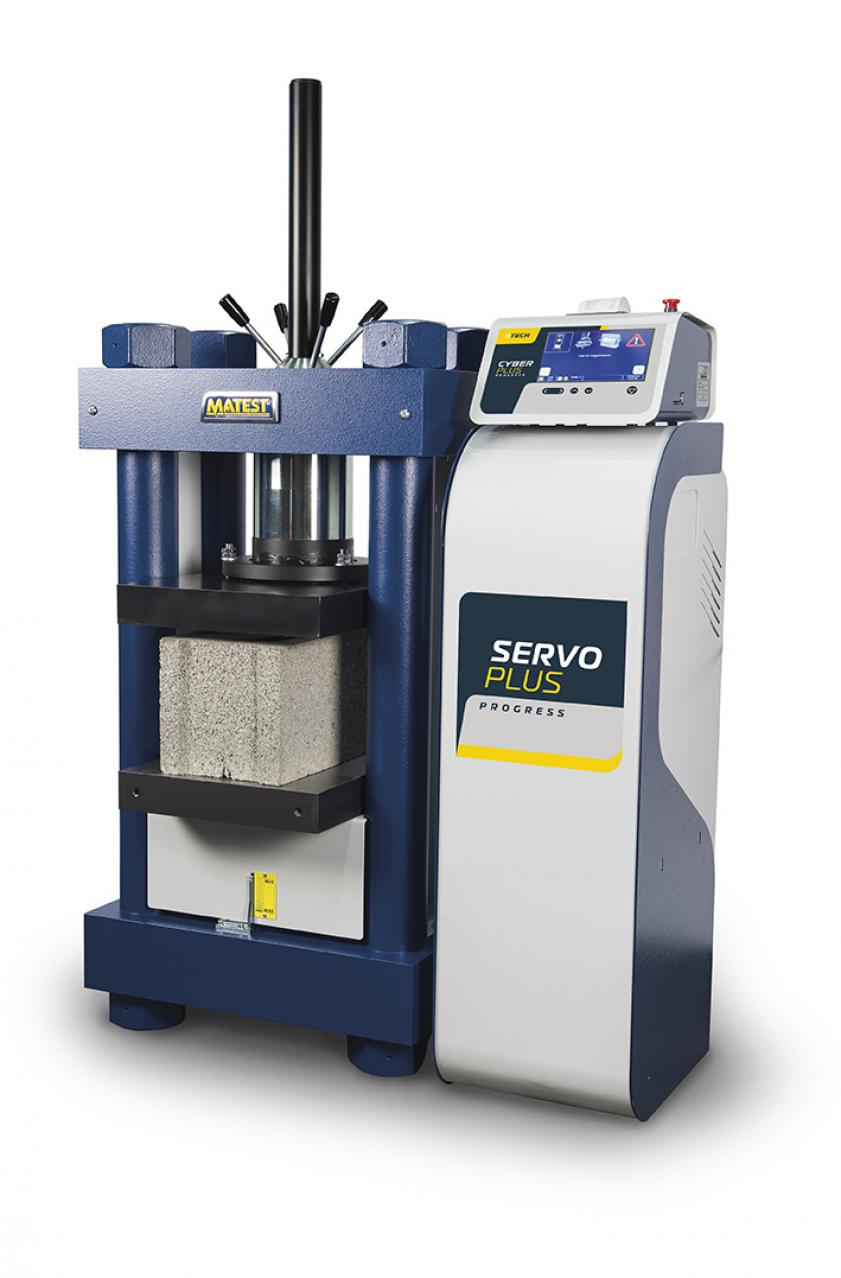

Compression testing machine 3000 kN capacity, motorized with Servo- Plus Progress control unit (fully automatic model), to test blocks max. 500x300 mm, cubes up to 300 mm side and cylinders up to dia. 160x320 mm.

Request information
  • Max. vertical daylight between platens: 336 mm
  • Horizontal daylight between columns: 340 mm
  • Compression platens 510x320xh55 mm
  • High stiffness and heavyweight 4-column frame (German-style)
  • Calibration accuracy: Class 1
  • Max. ram travel 55 mm approx.
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 870x590x1100 mm approx.
  • Weight: 1150...1220 kg
