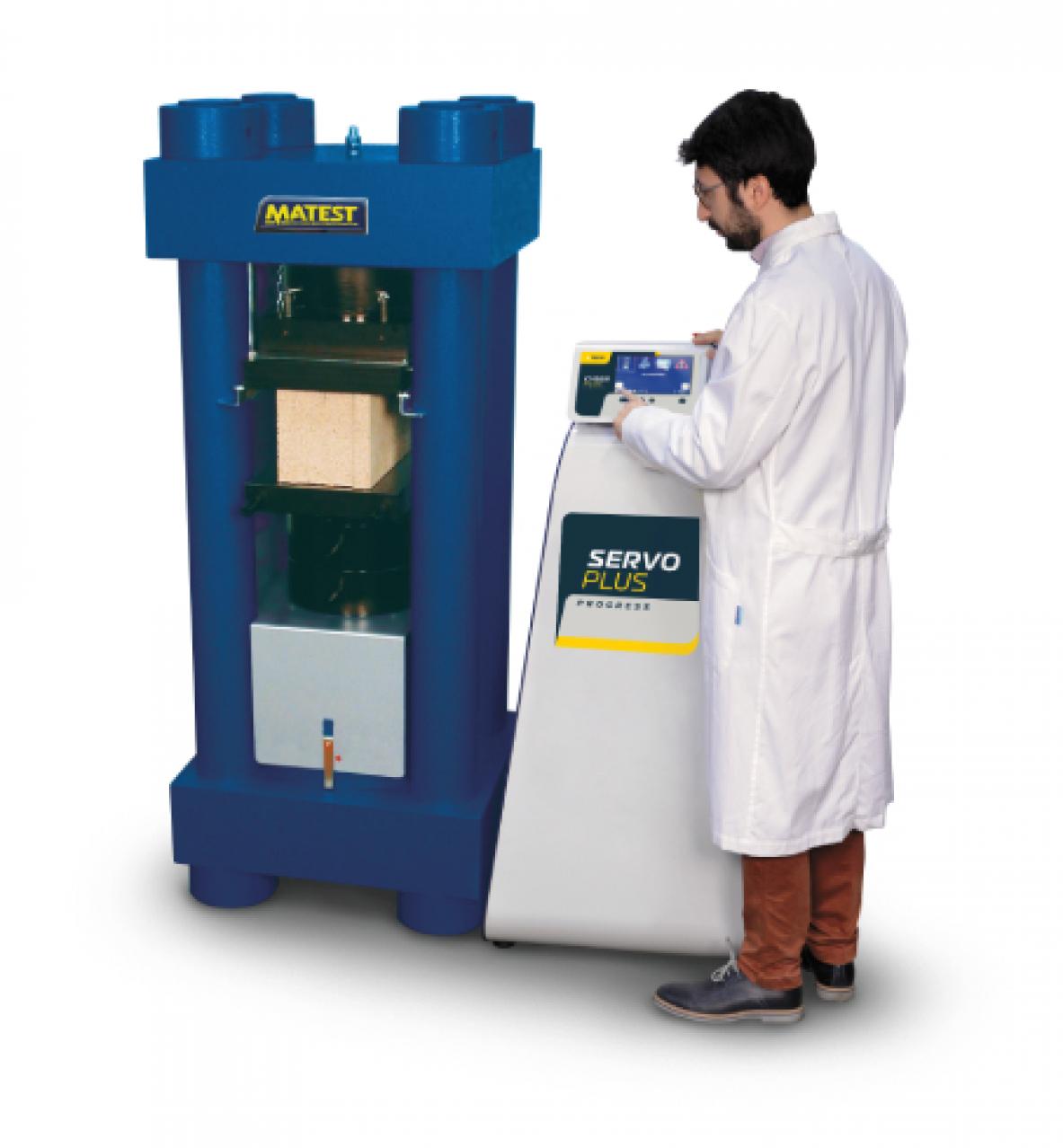

C086-03N Concrete compression machine 5000 kN automatic, Servo-Plus Progress

( Concrete )

BS 1610
NF P18-411
ASTM C39
AASHTO T22
GOST 10180

Compression testing machine 5000 kN motorized with Servo Plus Progress control unit (fully automatic model), to test cubes up to 300 mm side and cylinders up to dia. 250x500 mm.

Request information

Accessories
Main Features

C121-04

Safety guards for 5000 kN compression machines
C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C086-10

Distance piece 50 mm high
C086-11

Distance piece 25 mm high
C112-11

Upper and lower compression platens with seat ball
C117

Sliding rail carriage
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C106

Flexural device on concrete beams
C099N

Inverter device
C099-01

Barcode Scanner
C097-01

Dual low capacity range
C097-02

Dual low capacity digital range, 0-300 kN
C100

Splitting tensile test device for cylinders
C103

Splitting tensile device for cubes
C121-52

Electric switch for the piston
E170

Compression device for mortar prisms, EN standard
SSW-LINK

Firmware Upgrade for SmartLab Software
SSW-LINK

Aggiornamento Firmware per SmartLab

Max. vertical daylight: 530 mm
Horizontal daylight between columns: 340 mm
Compression platens 310x310x68 mm
Calibration accuracy: Class 1
Max. ram travel 60 mm approx.
High stiffness and heavyweight 4-column frame (German-style)
Power supply: 230V 1ph 50Hz 750W
Dimensions: 970x750x1800 mm approx.
Weight: 2800...2900 kg approx.
