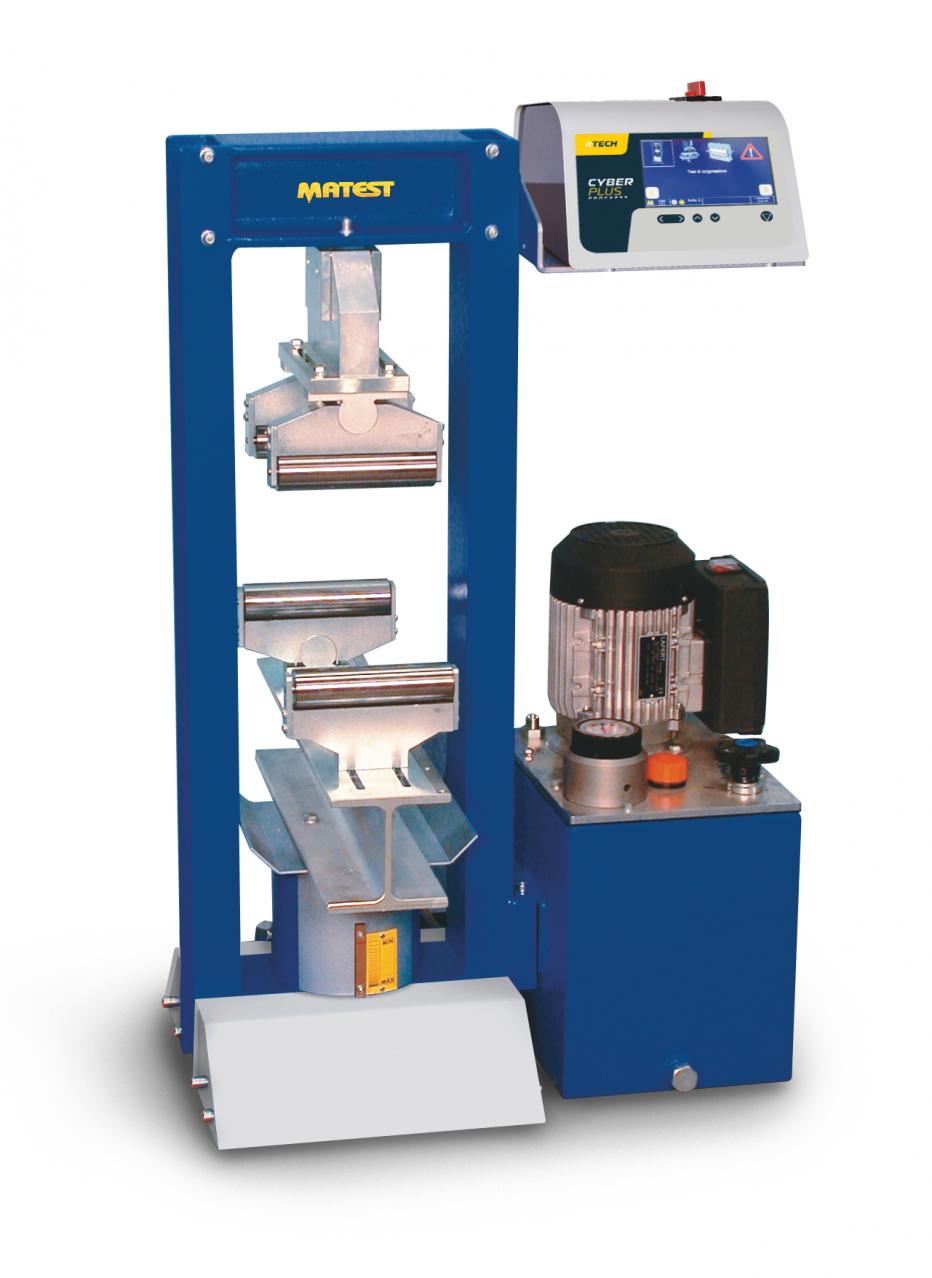

Concrete flexural machine 150 kN semi-automatic, Cyber-Plus progress

Code: C090-02N

Concrete flexural machine 150 kN motorized with Cyber-Plus progress touch-screen unit (semi-automatic model), to perform flexural tests on concrete beam specimens max. dimensions 150x150x600 (750) mm.

C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C115-01

Two way hydraulic valve
C126

Bench for compression machines
C097-01

Dual low capacity range
C111-16

Distance Piece to test Concrete Beams
C100

Splitting tensile test device for cylinders
E172-01

Flexure device for mortar prisms, EN standards
E170

Compression device for mortar prisms, EN standard
SSW-LINK

Firmware Upgrade for SmartLab Software

Max. vertical daylight between upper/lower rollers: 160 mm
Horizontal daylight of the testing chamber: 240 mm
Rollers dimensions: Ø 40x160 mm
Complete with 4 adjustable and articulated rollers.
Distance of lower rollers adjustable from 100 to 455 mm
Distance of upper rollers adjustable from 40 to 155 mm
Gauge diameter 250 mm with 0.5 kN divisions.
Max. ram travel 50 mm approx.
Calibration accuracy: class 1
Hydraulic device to stop the piston stroke at its max excursion, to avoid pumping the piston out of the cylinder.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 610x510x980 mm
Weight: 180...240 kg approx.
